BL TYPE

  • Permanent Installation
  • Testing and Exercising of Generators

SEPHCO BL Series Resistive Load Banks

For Permanent Installation To Periodically Test & Exercise Stand-By Generators & UPS Systems. Weatherproof Construction, Complete With Controls.

Series BL2V, BL4V, BL6V, BL12V, BL18V, BL24V From 150kW to 2500kW Models

FEATURES
  • Weatherproof to IP55 (NEMA3R)
  • Vertical Air Discharge
  • Compact Design
  • Integrated Control System, Remote Or Local
  • Modbus Interface Available As An Option
  • Corrosion Resistant Marine Acrylic Finish
  • Stainless Steel Vibration & Immersion Proof Resistors
  • Optional stainless steel construction
APPLICATIONS
  • Data Centres
  • Hospitals
  • Office Buildings
  • Telecommunication Sites
  • Essential Services
  • Mining
  • Military Establishments
  • Mining

BL Series Description

BL series load banks are designed for permanent installation, suitable for harsh outdoor environments. Control arrangement and type is specifically designed for testing and exercising stand-by generators and UPS systems.Sephco load banks incorporate immersion proof and vibration proof stainless steel resistors.

Safety features include the Sephco “Triple Interlock” load protection system, guarding against fan cooling failure, airflow restriction, high temperature and fan reversal. Unique features of Sephco load banks include circuit breaker protection for each load group and full accessibility to switchgear components and resistors.

Installation of BL type load banks will ensure reliable back-up power from generators. Frequent exercising of generators will prevent wet stacking, cylinder bore glazing and reduce emissions.

Controls

BL series load banks are supplied with full control facility, locally fitted to the load bank or supplied loose for remote control. Additional options include Modbus interface.

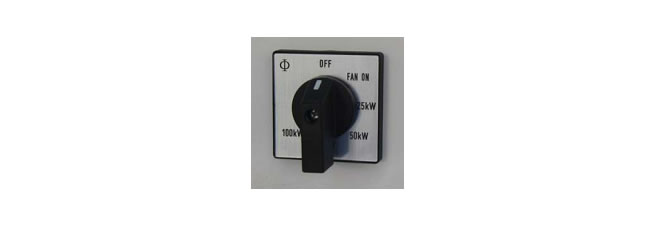

RTSW Control For BL Series Load Banks 25kW To 125kW

BL0V….RTSW Style Load Banks from 25kW to 125kW capacities are fitted with a weatherproof rotary type selector switch for manual control of the load bank. The switch operation features fan-start and load step increments. A fan cool-down function is automatically activated when the load bank is shut down. Auxiliary terminals are included in the load bank connections for a remote dump function.

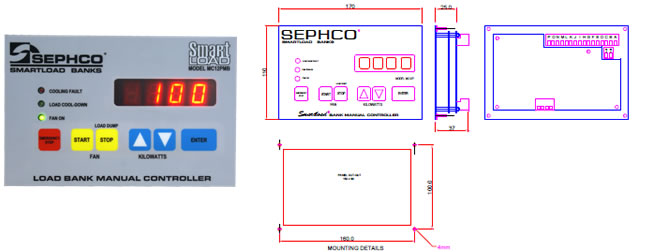

MC12PMB Control For BL Series Load Banks

The MC12PMB control panel is standard on all models from 150kW and higher. The control panel is supplied as an option on BL0V type load banks ranging from 25kW to125kW capacities.

The MC12PMB controller is generally supplied loose for remote mounting however, can be supplied fitted to the load bank if required. The control panel features a touch type keypad and LED load display, with simple operation of the load bank start up, kilowatt selection and load bank status.

The unit automatically configures the load steps in the load bank to provide instant kilowatt response as selected by the Up/Down keys. Other features include load bank “system check” which prevents loading in the event of fan cooling failure, fan reversal or high temperature. The control has additional inputs for a remote “Enable-Disable” signal andoptional Modbus interface.

OPERATING FEATURES

  • Digital kilowatt display of load value
  • Touch key button operation
  • Fan “Start”-“Stop” buttons
  • Kilowatt “UP” – “Down” buttons
  • Enter (Master) button
  • Emergency “Stop” button
  • LED Display:-
  • LED – Load Bank “ON” indication
    LED – Load Bank “COOLING FAULT” indication
  • LED – Load Bank “FAN RUN-ON” indication
  • LED – Modbus Active
  • LED – Modbus Running
  • Remote-Automatic Load Dump contact facility
  • Outputs to indicate load bank “Operating Normally”
  • and “Load Bank Failure”.

SEPHCO BL Series Resistive Load Banks

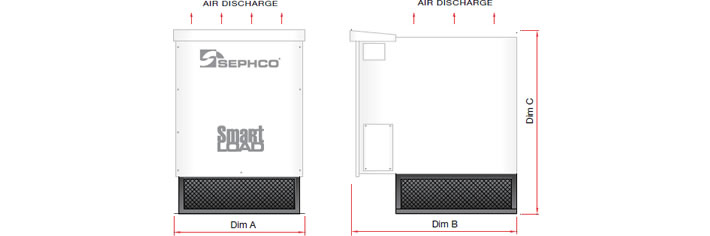

BLOV SERIES 20kW To 125kW

MC Series – Digital touch load selection control panel
MC-P for remote mounting
MC-L Fitted to Load Bank

MODEL No
RATING
LOAD
STEPS DIM.A
DIM.B
DIM.C
WEIGHT
NOISE LEVEL

BL0V125RTSW

125KW

25KW

745

835

985

156 KG

78dBa @ 1M

BL0V100RTSW

100KW

10KW

745

835

985

156 KG

78dBa @ 1M

BL0V75RTSW

75KW

10KW

745

835

985

145 KG

69dBa @ 1M

BL0V60RTSW

60KW

15KW

745

835

985

135 KG

69dBa @ 1M

BL0V50RTSW

50KW

10KW

745

835

985

135 KG

69dBa @ 1M

BL0V40RTSW

40KW

10KW

745

835

985

130 KG

69dBa @ 1M

BL0V30RTSW

30KW

5KW

745

835

985

130 KG

69dBa @ 1M

BL0V25RTSW

25KW

5KW

745

835

985

125 KG

69dBa @ 1M

BL0V20RTSW

20KW

5KW

745

835

985

125 KG

69dBa @ 1M

MC Series – Digital touch load selection control panel
MC-P for remote mounting
MC-L Fitted to Load Bank

MODEL No
RATING
LOAD
STEPS DIM.A
DIM.B
DIM.C
WEIGHT
NOISE LEVEL

BL0V125RTSW

125KW

25KW

745

835

985

156 KG

78dBa @ 1M

BL0V100RTSW

100KW

10KW

745

835

985

156 KG

78dBa @ 1M

BL0V75RTSW

75KW

10KW

745

835

985

145 KG

69dBa @ 1M

BL0V60RTSW

60KW

15KW

745

835

985

135 KG

69dBa @ 1M

BL0V50RTSW

50KW

10KW

745

835

985

135 KG

69dBa @ 1M

BL0V40RTSW

40KW

10KW

745

835

985

130 KG

69dBa @ 1M

BL0V30RTSW

30KW

5KW

745

835

985

130 KG

69dBa @ 1M

BL0V25RTSW

25KW

5KW

745

835

985

125 KG

69dBa @ 1M

BL0V20RTSW

20KW

5KW

745

835

985

125 KG

69dBa @ 1M

BL2V, BL4V, BL6V SERIES 150kW To 600kW
MODEL No
RATING
LOAD
STEPS DIM.A
DIM.B
DIM.C
AIR DISCHARGE
NOISE LEVEL
WEIGHT

BL6V600MC

600KW

50KW

1405

1310

1720

9.0 cu.m/s

88.0dBA @1M

650 KG

BL6V500MC

500KW

50KW

1405

1310

1720

9.0 cu.m/s

88.0dBA @1M

600 KG

BL6V400MC

400KW

40KW

1305

1175

1510

6.6 cu.m/s

80.5dBA @1M

450 KG

BL6V360MC

360KW

40KW

1305

1175

1510

6.6 cu.m/s

80.5dBA @1M

425 KG

BL6V320MC

320KW

40KW

1305

1175

1510

6.6 cu.m/s

80.5dBA @1M

400 KG

BL4V280MC

280KW

40KW

1305

1175

1510

6.6 cu.m/s

80.5dBA @1M

375 KG.

BL4V240MC

240KW

40KW

1305

1175

1510

6.6 cu.m/s

80.5dBA @1M

345 KG

BL4V200MC

200KW

25KW

1105

975

1400

4.7 cu.m/s

72 dBA @1M

320 KG

BL4V150MC

150KW

25KW

1105

975

1400

4.7 cu.m/s

72 dBA @1M

300 KG

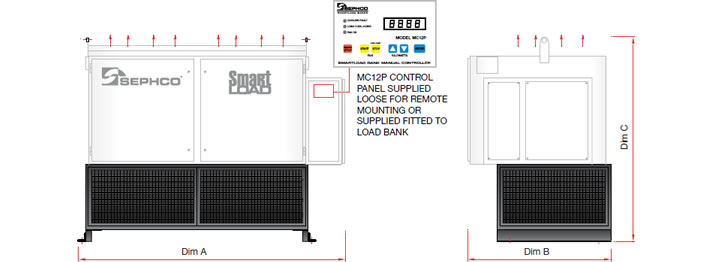

BL12V SERIES 800kW to 1200kW
MODEL No
RATING
LOAD
STEPS DIM.A
DIM.B
DIM.C
AIR DISCHARGE
NOISE LEVEL
WEIGHT

BL12V1200MC

1200KW

50KW

2405

1310

1865

17.9 cu.m/s

91 dBA @1M

1200 KG

BL12V1000MC

1000KW

50KW

2405

1310

1865

17.9 cu.m/s

91 dBA @1M

1000 KG

BL12V800MC

800KW

50KW

2405

1310

1865

17.9 cu.m/s

91 dBA @1M

1000 KG

BL18V SERIES 1500kW to 2000kW
MODEL No
RATING
LOAD
STEPS DIM.A
DIM.B
DIM.C
AIR DISCHARGE
NOISE LEVEL
WEIGHT

BL18V2000MC

2000KW

50KW

3405

1310

1760

26.9 cu.m/s

92 dBA @1M

1940 KG

BL18V1800MC

1800KW

50KW

3405

1310

1760

26.9 cu.m/s

92 dBA @1M

1900 KG

BL18V1500MC

1500KW

50KW

3405

1310

1760

26.9 cu.m/s

92 dBA @1M

1800 KG

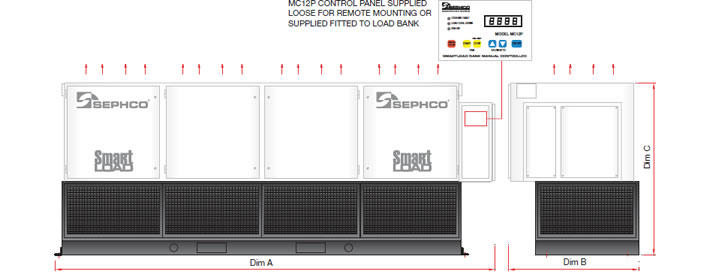

BL24V SERIES 2200kW to 2500kW
MODEL No
RATING
LOAD
STEPS DIM.A
DIM.B
DIM.C
AIR DISCHARGE
NOISE LEVEL
WEIGHT

BL24V2500MC

2500KW

50KW

4405

1310

1760

35.9 cu.m/s

93.5 dBA @1M

2350 KG

BL24V2400MC

2400KW

50KW

4405

1310

1760

35.9 cu.m/s

93.5 dBA @1M

2300 KG

BL24V2200MC

2200KW

50KW

4405

1310

1760

35.9 cu.m/s

93.5 dBA @1M

2250 KG

Operation & Accessories

For Permanent Installation To Periodically Test & Exercise Stand-By Generators & UPS Systems. Weatherproof Construction, Complete With Controls.

TYPE RTSW CONTROL

Manually Operated Control Switch, Load bank Mounted on BL0V models from 20kW to 125kw capacities only.

Typical Load Bank Model Designation BL0V…..RTSW

TYPE MC12PMB-L CONTROL

Digital Display Electronic Panel Supplied Loose For Remote Mounting And Control. Supplied With All BL Series Load Banks Standard From 150kW Capacities. Can Be Supplied Also As An Option With BL0V (20kW-125kW) Units.

TYPE MC12PMB-P CONTROL

Digital Display Electronic Panel Mounting On Load Bank. Supplied With All BL Series Load banks From 150kW Capacities.

Typical Load Bank Model Designation BL2V…..MCP

Digital Communication- RS485 Modbus™ RTU Option

MB800 Modbus Interface Module & Software Added To MC12PMB Control Panel.

Typical Load Bank Model Designation BL2V…..MCMB
